Heavy load capacity drawer slide channel ball bearing full extension comercial industrial tool box slide rials with lock 45mm 51mm 53mm 56mm 71mm 76mm Width
Feature
| Brand Name | Aomek |
| Type | Heavy Duty 3 Folded Drawer Slide |
| Model Number | AA001 |

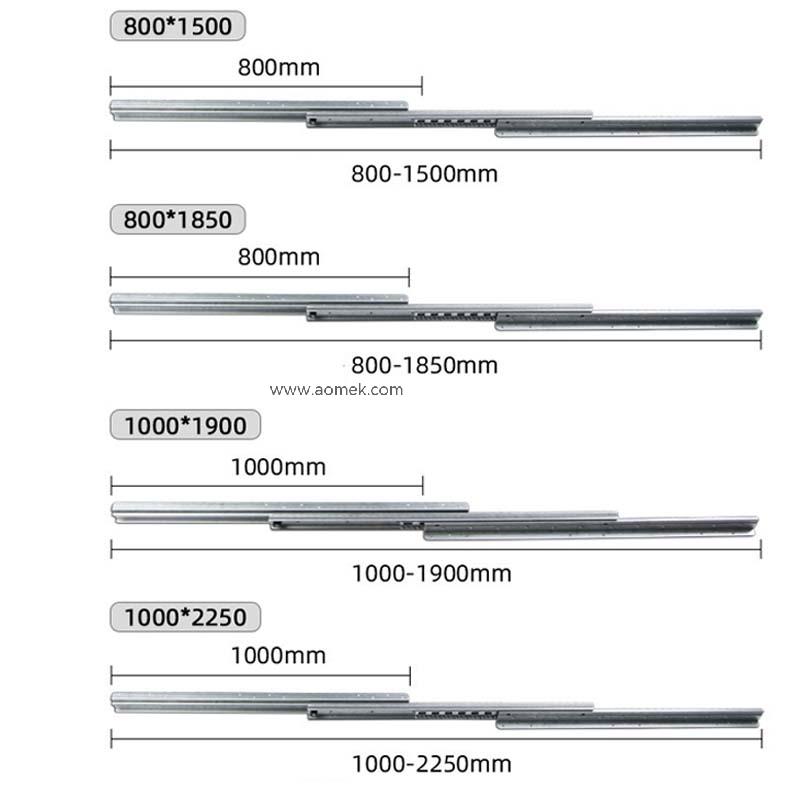

| Lenght | 12"-24" (300-1000mm), to 52", 50mm one gear, can be customized 500mm/20",550mm/22"-1300mm/52",1350mm/54",50mm one gear |
| Width | 45mm,51mm,53mm,56mm,71mm,76mm |
| Material thickness | 2mm, 2.5mm |
| Main Material | Cold Rolled Steel |
| Finish | Zinc plated, Electrophoresis |
| Color | Zinc plated blue, Zinc plated black, Electrophoresis black |
| Loading capacity | 120KGS/450MM(18'') |

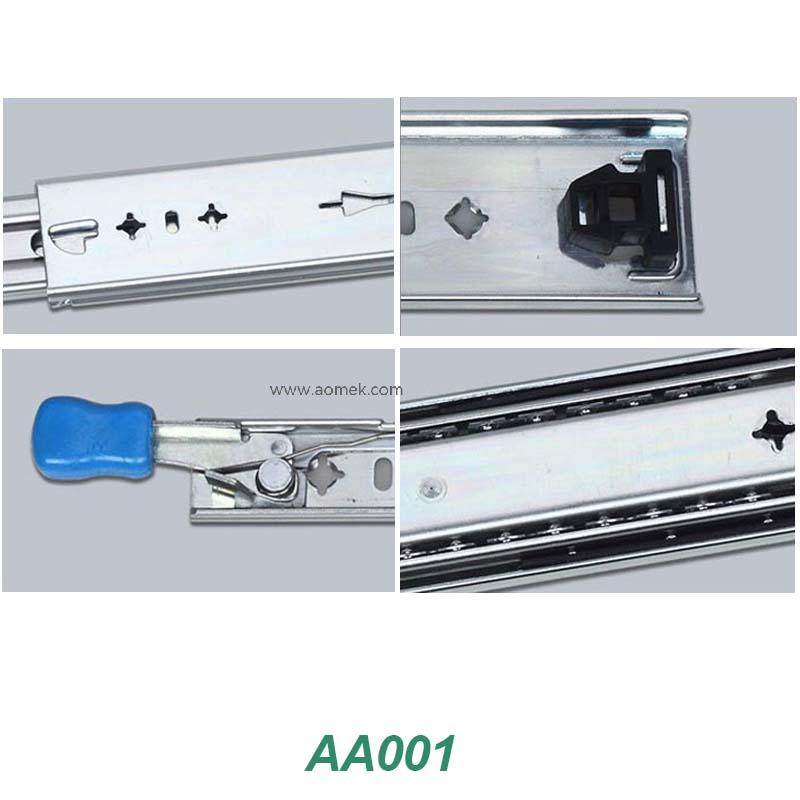

| Design Feature | 3 folded slides, load - bearing 120KGS, full extension, heavy duty,. Drawer and cabinet wall can be installed separately, the lock function can prevent the drawer from sliding, the slide rail is convenient to remove, fast installation. |

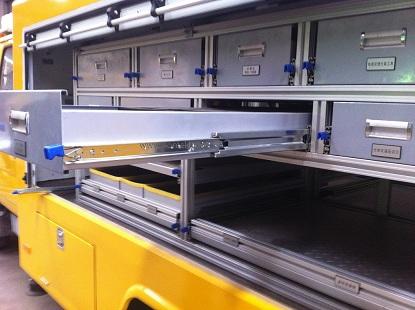

| Application | Kitchen, Dining, Outdoor, Office Building, Hospital, Mall, Sports Venues, RV, Leisure Facilities, Farmhouse, Courtyard, Other, Hall, Garage & Shed, Gym, Commercial equipment, Retrofitted vehicles, Cabinet, ATM, pantry pull outs,industrial drawers |
| Package | Inner packing: 1PCS/PE Bag Outer packing: 4 sets/Carton |
