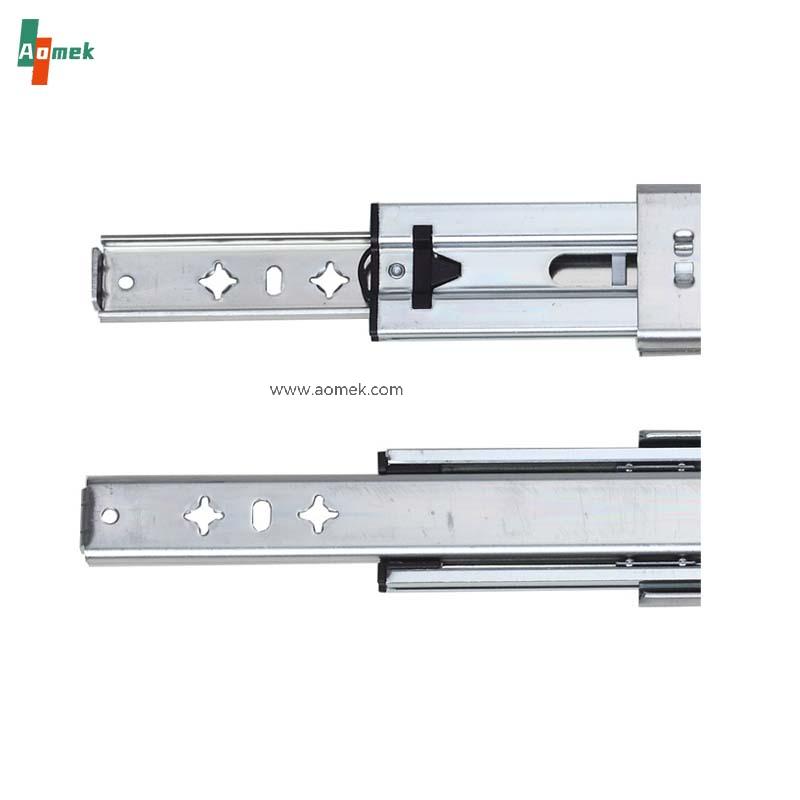

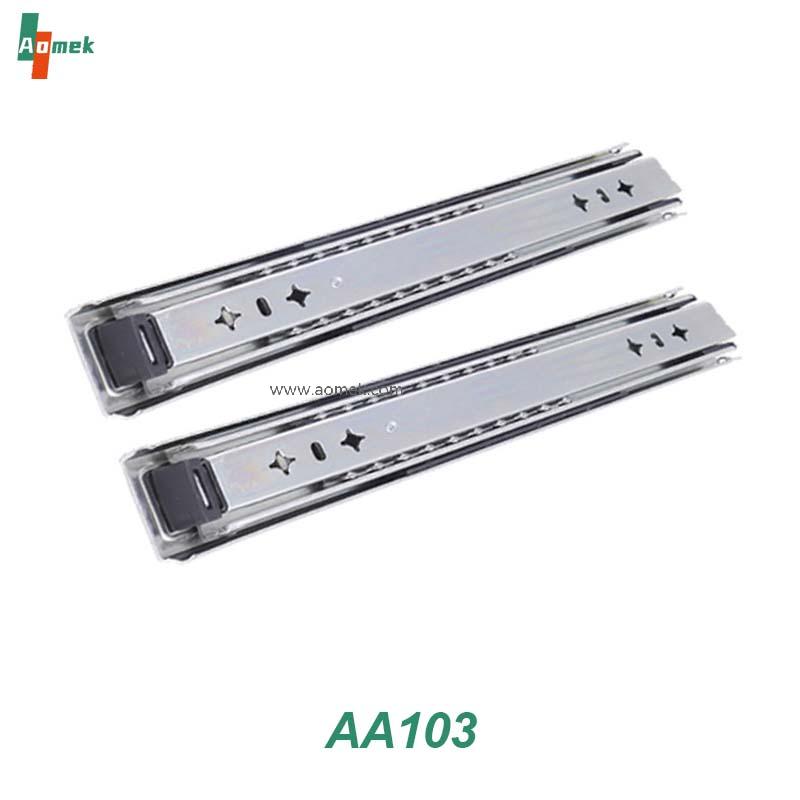

Heavy Duty Drawer and cabinet 3 Folded Slide Rails AA103
Feature
| Brand Name | Aomek |
| Type | Heavy Duty 3 Folded Slide Rails |
| Model Number | AA103 |
| Lenght | 350mm, 400mm -1150mm, 1200mm, 14", 16"-46",48" |
| Width | 45mm, 53mm, 51mm, 56mm, 71mm, 76mm |
| Material | Cold Rolled Steel |
| Finish | Zinc plated, Electrophoresis |
| Color | Zinc plated blue, Zinc plated black, Electrophoresis black |
| Loading capacity | 120KGS/450MM(18'') |
| Design Feature | Drawer and cabinet wall can be installed separately, large load function can prevent the load of the drawer, slide rail disassembly is convenient, fast installation. |

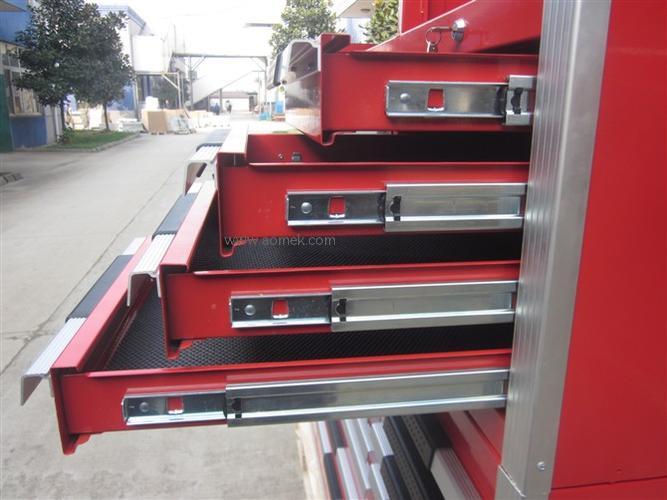

| Application | Large iron cabinet, storage cabinet, tool box, steel cabinet mechanical equipment, off-road RV, tatami bed, general large drawer |
| Package | Inner packing: 1PCS/PE Bag Outer packing: 4 sets/Carton |
